MuteClip XP Double – Ceiling Soundproofing

Add to cart
Calculator
Ceiling Soundproofing

MuteClip XP Double

Take a look at the system’s features and benefits.

View Components
56dB Airborne reduction*

Noises like shouting, talking, loud TV’s and music. Learn more >

55dB Impact reduction*

Noises like footsteps on wood flooring and washing machines.

74mm additional System Height

The height added to your ceiling after the system is installed.

NOISE REDUCTION

Hear the difference.

Play the video to hear the airborne sound difference before and after installing this system. For best results try to match the volume of the unreduced audio to the volume of the noise you’re able to hear.

The noise in the video has been digitally reduced to give you an idea of the sorts of results you could expect. Unfortunately, this is not a perfect science and your personal results could vary due to myriad reasons. However, we have found our customers prefer to hear a decibel reduction rather than read it!

We stand for quality, and we are proud of it.

Joist ceiling soundproofing to help level uneven joists while retaining the same performance as our standard MuteClip®. An upgrade to our MuteClip® XP Single for reducing airborne and impact noise.

MuteClip® XP Double is a popular option for projects that require a ceiling soundproofing solution that is both high performing and can accommodate varying joist depths as well as differing ceiling heights without resulting to additional joist levelling or ad-hoc methods of installation.

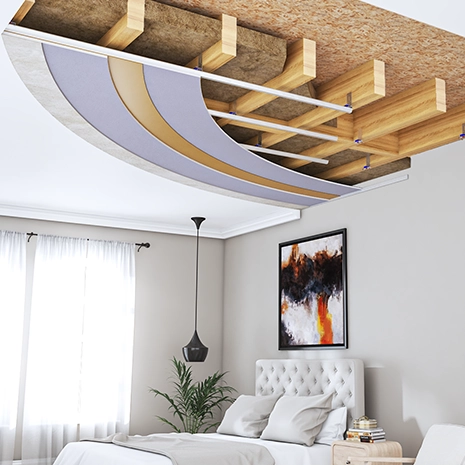

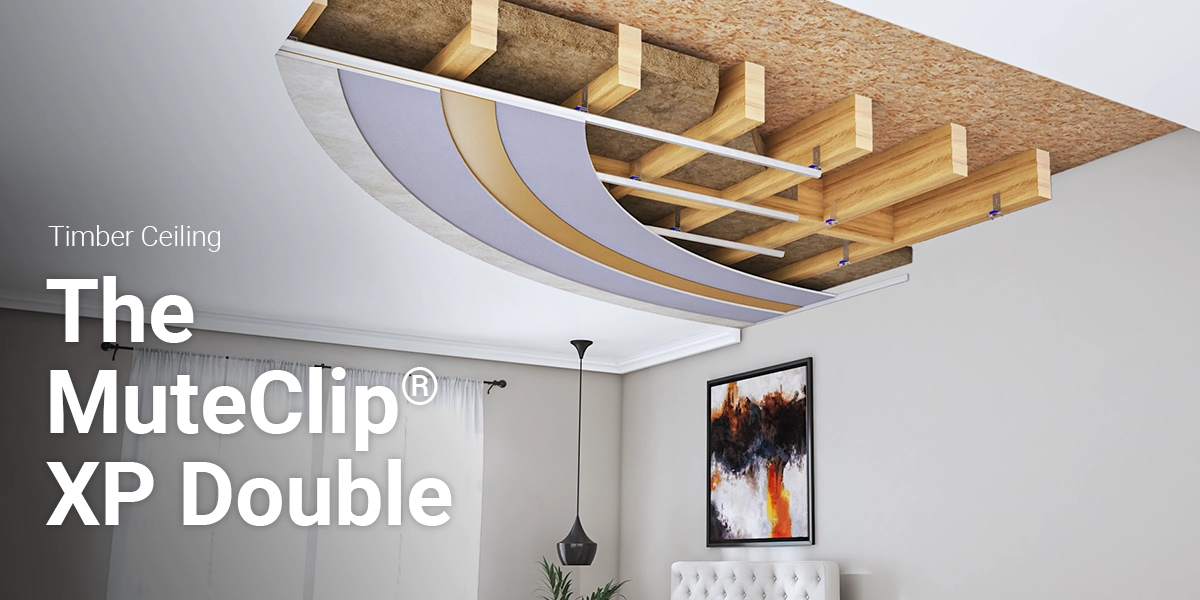

It creates fewer lesser points of contact with the joist ceiling using our MuteClip® XP which is composed of a dual-density rubber in a galvanised metal case that performs like a shock absorber and this is bolted to an extension bracket that allows for an additional 100mm of spacing for accommodating the joist heights. The MuteClip® Channel affixes to the MuteClip® XP and the new soundproof ceiling which is composed of two layers of dense Acoustic Plasterboard 15mm and Tecsound suspends away from the ceiling joists.

What this ultimately results in is a vastly improved reduction of airborne noise, especially in the more problematic lower to middle-lower frequencies, as well as reducing impact noise and other forms of light vibration.

Advice and installation

Our team are always a phone call away ready to offer advice and support. Our systems can be installed by competent DIYers but if you would like to work with an installer we have relationships with installers up and down the UK that we can put you in touch with.

  • Easy to install, no incorrect fixing or shortages, unlike standard Resilient Channel.
  • Loss of space will differ depending on joist heights.
  • 52dB* for airborne (where a higher number is desired)
  • 53dB* for impact (where a lower number is desired)
  • 10dB – 20dB estimated improvement for airborne noise and 20dB estimated improvement for impact noise* (where 10dB is a 50% reduction as perceived sound loudness)
  • Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland) and Building Standards Technical Handbook 2017 for Scotland for airborne and impact transmission. (Details are available on the ‘System Performance’ tab above).

MuteClip Double Extended Profile Calculator

Use our handy calculator to see what soundproofing products your project will require. Don’t forget to unfold the ‘more info’ tab below to learn how to use this calculator.

Once you have your calculator results you can add all the products to your basket using the button below. You will have to manually input the results from the calculator. We know this is not ideal and we are looking into developing a solution for this.

Select single products
Timber Ceiling – MuteClip Double XP

Partition Measurements

Results

Advanced Settings

The product calculator provides an estimated quantity based on the information provided by the user. iKoustic is not responsible for inaccuracies due to incorrect input of measurements, room dimensions, or other user-provided data. We recommend double-checking all measurements and consulting our team for any further guidance to ensure the appropriate amount of product is purchased for your specific project needs.
Start Over
Ceiling Isolation Clip Calculator
Ceiling Stud Center

The ceiling joist center is the distance between ceiling joists measured from the center. The typical ceiling joist is 400mm. If you are working directly on a concrete ceiling we recommend using a 400mm spacing here also.

Ceiling Channel Center

The ceiling channel center is the distance between the MuteClip Channels. The typical channel center is 400mm. If you are working directly on a concrete ceiling we recommend using a 400mm spacing here also.

  • If you have multiple adjacent surfaces or partitions to soundproof input them individually. Not as a total m2 input as this will affect the results.
  • If you have windows, fireplaces or other fixed structures we recommend booking a call with us before purchasing.
Ceiling soundproofing calculator
Ceiling ‘Width’

For the calculator, the width of a ceiling is the measurement that runs perpendicular to your existing ceiling joists.

Ceiling Joist length

Joist length refers to the measurement that runs parallel with your existing ceiling joists.

Frequently
Asked
Questions

A soundproofing system isn’t rocket science but sometimes figuring out which one is right for you can be challenging. Check out our FAQs, get in touch via our live chat, or give us a call to speak to a human.

Contact us

The extended profile of the MuteClip® XP assists in creating a soundproof ceiling solution that can be built into uneven joist ceilings without the need for any structural alterations by fitting on the side of the joist and allowing for 100mm distance between two points. Not only is this a perfect way to not add installation costs to a final project, but it does not alter in acoustic performance, they are the same performance figures to the standard MuteClip® option. You will need to take care to make sure that the Acoustic Plasterboard layers are not in contact or too close to the joists at the final levelling as this could cause impact noise and vibration to travel into the board – reducing the ceilings isolation properties and performance.

All common household neighbour and internal noise issues that are often found to be problematic are reduced with our MuteClip® XP Double system. We would expect to see improvements for all impact and airborne noise issues to where they are all brought down to a background noise level – although Flanking Transmission down walls should also be addressed with a robust ceiling soundproofing solution in place, weakened stud frame walls and walls with dot and dab plasterboard fitting will leak sound. Hearing is also a subjective measurement into where sensitivities ranging from those stemming from medical conditions and other hearing or psychological ailments can also be at play in reviewing the soundscape.

When the assessment of conversion is taking place for single dwellings converted into multiple houses – there are a range of sound paths that require treatment, especially if no existing soundproofing has been put in place. It is therefore vital that adjacent walls are reviewed and addressed accordingly as a ceiling soundproofing solution will often be negated from these paths, and leading to a failure in acoustic testing. With these addressed the MuteClip® XP shows acoustic results of surpassing values across the board for Part E Building Regulations. For proposed timber structures that require approval against the acoustic values in Part E, we can create partition designs with your floor and ceiling structure in place to evaluate possible outcomes with impact and airborne noise.

Resilient Channels do not offer a ceiling levelling option like our MuteClip® XP does, which is a bonus for anyone looking to create a single ceiling structure that features structural twists and bends.

The importance of creating isolation gaps to reduce Flanking Transmission is significant here in that the Acoustic Plasterboard layers should not be in contact with the adjacent walls for any vibration detected in these areas will move back into the boards, short-circuiting the suspension provided by the MuteClip® XP and Channel. If the Acoustic Plasterboard layers are tightly abutted against the wall, it will also reduce the suspension by creating resistance – reducing the systems movement to dealing with impact noise and low frequencies.

The total thickness of Acoustic Mineral Wool relies on the thickness of joist – to which can vary depending on loading requirements and span of the room. A typical joist depth found in most residences of 2×8 inches or 50.8 x 203.2, so a total thickness of 150mm of Acoustic Mineral Wool should be installed. It is recommended to leave an air gap of at least 10mm from the MuteClip® Channel and the floor above, tightly compacting in additional Acoustic Mineral Wool or any other type of insulation will reduce the system’s performance.

For anything within the depth of the new soundproof ceiling – ceiling and wall features such as cornice, coving or non-structural ornamental features should be removed before installation and electronics – light fixtures, alarms or motion sensors, for example, should be disconnected and any wiring extended to accommodate new depths. Plasterboard or a Lath and Plaster ceiling would also need to be removed to allow the fitting of the MuteClip® XP.

downloads

If you need product data or installation guides for this system you’ll always find them here.

If you are looking to specify this product for a build, please refer to our downloads tab for technical product or systems information.

Technical Support
Should you require further technical assistance in specifying our products, please contact us.

BIM Objects
iKoustic also supply a selection of BIM objects via our NBS profile, which can be found here.

Our products contain a high level of mass. If there are any structural concerns you will want to consult a Structural Engineer to discuss your requirements.

*Our Typical Performance Results and Noise Reduction Guidance are provided to indicate the results that have been achieved in previous tests but are not guaranteed to a specific site as multiple factors can affect this, you can view their variants on our ‘Featured Systems’ tab.
