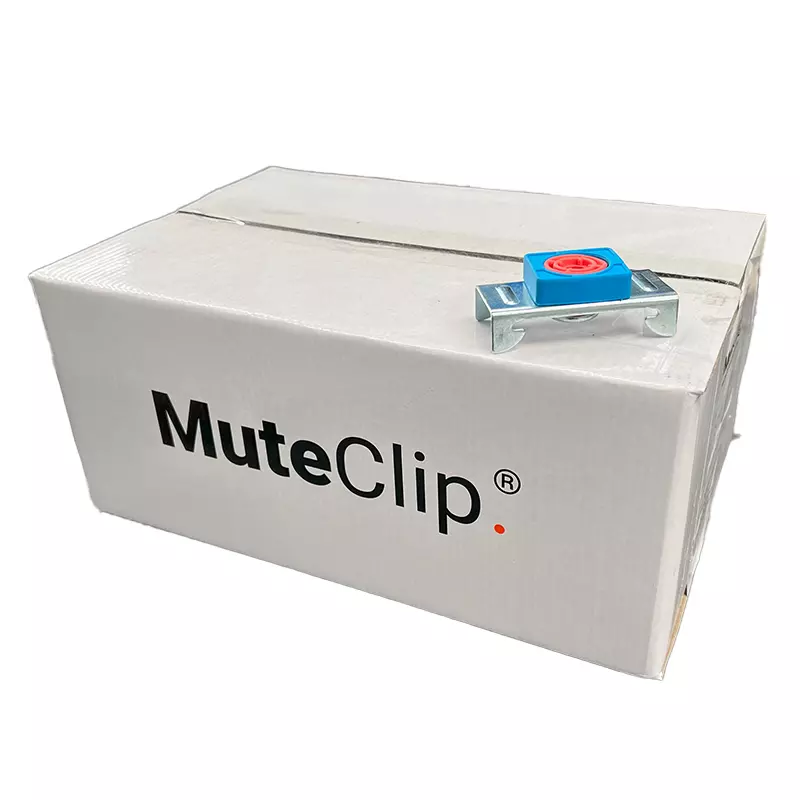

(150) MuteClip® Isolation Clips box

Shipped by iKoustic from the UK

£592.50

£711.00 inc. VAT

Delivery and Returns Policy

  • Soundproofing clips for building clip and channel independent frames
  • MuteClip® system reduces airborne sounds (e.g. music, tv & talking).
  • MuteClip® system reduces impact sounds (e.g. heavy footsteps, washing machines).
  • Works exclusively with MuteClip Channel
  • Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).
  • Quantity: 150
  • Dimensions: 76mm x 35mm x 29mm
  • Weight: 50 grams
  • Noise reduction: 35 dB impact 60dB airborne*. What’s this?



MuteClip® Isolation Clips

Our MuteClip® isolation clip systems deliver the highest standard of soundproofing we offer. Isolation clips and channels are used to build a ‘de-coupled’ frame for wall and ceiling soundproofing. Plasterboard or other soundproofing materials can be installed onto this ‘de-coupled’ frame.

The MuteClip® is backed with dual-density silicone. This acts as a shock absorber surrounding the fixing and buffering the metal clip. The MuteClip Channel is then ‘clicked’ into the MuteClip® providing a slimline and ‘de-coupled’ frame for plasterboards to be attached to.

All of this works to reduce the sound vibrations able to transfer through your wall or ceiling and into your space.

How to soundproof a wall with isolation clips

MuteClip Isolation Clip Calculator

Use our handy calculator to see how many MuteClips and Channels your project will require. Unfold our ‘more info’ tab below to learn more about how to use this calculator.

MuteClip® & Channel Calculator

Partition Measurements

Results

Advanced Settings

The product calculator provides an estimated quantity based on the information provided by the user. iKoustic is not responsible for inaccuracies due to incorrect input of measurements, room dimensions, or other user-provided data. We recommend double-checking all measurements and consulting our team for any further guidance to ensure the appropriate amount of product is purchased for your specific project needs.
Start Over
Wall Isolation Clip Calculator
Ceiling Isolation Clip Calculator
Wall Stud Center

The wall stud center is the distance between stud uprights. The typical stud upright is 600mm. If you are working directly on a brick wall we recommend using a 600mm spacing here also.

Wall Channel Center

The wall channel center is the distance between the horizontal MuteClip Channels. The typical channel center is 600mm. If you are working directly on a brick wall we recommend using a 600mm spacing here also.

Ceiling Joist Center

The ceiling joist center is the distance between ceiling joists measured from the center. The typical ceiling joist is 400mm. If you are working directly on a concrete ceiling we recommend using a 400mm spacing here also.

Ceiling Channel Center

The ceiling channel center is the distance between the MuteClip Channels. The typical channel center is 400mm. If you are working directly on a concrete ceiling we recommend using a 400mm spacing here also.

  • If you have multiple adjacent surfaces or partitions to soundproof input them individually. Not as a total m2 input as this will affect the results.
  • If you have windows, fireplaces or other fixed structures we recommend booking a call with us before purchasing.
Ceiling soundproofing calculator
Ceiling ‘Width’

For the calculator the width of a ceiling is the measurement that runs perpendicular with your existing ceiling joists.

Ceiling ‘Height’

For the purposes of this calculator height refers to the measurement that runs parallel with your existing ceiling joists.

Dual Denisty sound reduction

Dual Density Silicone

Silicone acts as a buffer between the screw fixing and the Clip and Channel. We incorporate two different density’s into our design that perform better at different frequencies. Giving you the best of both worlds!

Clip and channel vs stud frame

Thinner than a stud frame

The completed clip and channel system has a width of just 40mm. When finished with a single layer of acoustic plasterboard and acoustic mineral wool on masonry wall that’s just 55mm for a 54dB* Noise reduction. A huge difference in sound!

Airborne and impact sound

Effective against airborne and impact noise

MuteClip® products create a de-coupled ceiling or wall that is excellent at reducing airborne and impact noise that may be intruding your space.

Soundproofing substrates

Apply to multiple substrates

MuteClip® products can be installed on wooden joists, concrete wall and ceilings brick walls and even metal frames.

Bass speakers

Effective against high and low frequencies

MuteClip® systems perform well against high frequencies and the more challenging low bass frequencies.

MuteClip Install 2

Performs better than resilient channels

Click here to read more about how clip and channel systems have begun to replace resilient channels and why.

MuteClip Ceiling soundproofing

Use as part of a soundproofing system

The MuteClip® range is designed to be used as a part of multiple systems for soundproofing walls and ceilings. Click here to see which system is right for you.

packaging boxes wrapped plastic pallets with hand pallet truck shipping warehouse cargo shipment

Soundproof Panels UK Delivery

We hold stock of all of our products ready to dispatch same day Monday to Friday. We also offer next-day delivery for orders placed before 1 pm Monday to Friday. Please note MuteClip® Channels must be shipped on a pallet.

The total thickness is 40mm combined.

Our MuteClip® is designed to be installed in almost any internal application to soundproof walls and ceilings, used to soundproof existing stud partitions or in brick and block constructions against noisy neighbours, against disruptive noise in the workplace and can also be installed as a highly effective soundproofing solution for home cinemas, recording studios and other audio-focused environments where levels of noise can be found in excess of ordinary household disturbances.

It is an affordable option for large residential or commercial projects that opt for or require a robust acoustic solution in which developers wish to exceed standard building regulations that lead to the increased comfort of living or workspace environment.

Yes it can, with existing stud partitions you will likely find a lightweight material, often a pink-fluffy heat insulation material, between the stud framing with perhaps only a standard plasterboard applied to each side, which is why you may be hearing excessive noise – these can also be found not only in internal dwellings of your own home or property but also in neighbouring houses that were constructed before the introduction of Building Regulations in 2003, this can be intrusive and disruptive to living spaces. Without a brick or block wall creating the initial high mass, which is vital for soundproofing against airborne noise issues, conversation and television, for example, our MuteClip® offers high acoustic performance in these cases.

16kg per MuteClip® is the maximum load that can be applied to each clip; our team can help to advise you on the weights on a square meter basis which takes into account all elements of each system. We aim to be no more than 75% capacity of the clip as hitting the maximum reduces the suspension of the MuteClip®, this is true for all other acoustic clips too, reducing its soundproofing effectiveness.

It all depends on which of our systems MuteClip® is incorporated into and what is currently in place, for example, a concrete or brick wall will offer solid support for soundproofing whereas breezeblock is often very porous, meaning that it allows an increased degree of airflow through, allowing the property to breathe. Stud framing offers the least soundproofing but creates an air gap which works in favour of each soundproof system and would require Acoustic Mineral Wool to be put in place to offer this improvement. We provide estimations of performance in our acoustic results, but it is important to note that every property will behave differently – we are always updating our acoustic results where possible.

We offer a range of trade discounts that are dependent on the frequency and or value of orders alongside our service and guidance for each and every project. We ask that a few orders are placed prior if you have placed orders with us or have a few projects looking to specify MuteClip®, do get in contact with us to see how we can help you best.

Videos and Downloads

Find out more information about MuteClip by downloading the guides below.

Installation Guide

Product Data Sheet

Systems Performance Data

MuteClip Channel Data

If you are looking to specify this product for a build, please refer to our downloads tab for technical product or systems information.

Technical Support
Should you require further technical assistance in specifying our products, please contact us.

BIM Objects
iKoustic also supply a selection of BIM objects via our NBS profile, which can be found here.

Important Information

Our products contain a high level of mass. If there are any structural concerns you will want to consult a Structural Engineer to discuss your requirements.

*Our Typical Performance Results and Noise Reduction Guidance are provided to indicate the results that have been achieved in previous tests but are not guaranteed to a specific site as multiple factors can affect this, you can view their variants on our ‘Featured Systems’ tab.
